Holster Cant and Ride Height: How to Set Up an OWB Paddle Holster
Share
Short answer: cant is how far your holster tilts the grip forward, and ride height is how high the pistol sits against your belt. For most people carrying OWB at 3 to 4 o'clock, a slight forward cant of about 10–15° (the "FBI cant") with the grip just above the belt line gives the most natural draw. The TACFENDER Universal Holster has an adjustable cant dial and adjustable height, so you can dial it in instead of buying a new holster.
Holster makers like Alien Gear, Safariland, Blackhawk (Serpa) and a dozen Kydex shops all sell "FBI cant" or "straight drop" models. The problem is that you usually pick the angle before you've ever worn the holster. Pick wrong and the draw feels awkward, the grip digs into your side, or the pistol prints under a shirt. This guide explains how cant and ride height work together and gives you a 10-minute setup routine.
Key facts at a glance
| Setting | What it is | Typical range | Best for |
|---|---|---|---|
| Straight drop (0°) | Pistol hangs vertical | 0° | Range work, duty-style carry at 3 o'clock, drawing while seated upright |
| FBI cant (forward) | Grip tilted forward | ~10–20° | Carry at 3:30–4 o'clock, driving, a more natural wrist angle |
| Heavy forward cant | Strong tilt | 20°+ | Behind-the-hip carry; less common |
| High ride | Grip well above the belt | — | Faster grip, but more printing |
| Low ride | Grip closer to the belt line | — | Concealment and comfort, but a harder full grip |
What cant actually changes
Stand relaxed and let your strong hand hang, then bring it up to your hip. Your wrist isn't vertical; it's angled slightly forward. A forward-canted holster matches that angle, so you get a full firing grip without bending your wrist. That's why FBI cant became popular with plainclothes agents: it's comfortable when sitting, driving and moving, and the draw feels natural.
A straight-drop holster keeps the pistol vertical. At 3 o'clock, directly over the hip, a vertical draw is very efficient, which is why range and duty setups often run near 0°.
The rule of thumb: the farther back the holster sits on your belt, the more forward cant you need.
What ride height changes
Ride height controls how much of the grip sits above your belt. More grip above the belt gives you a faster, fuller grip, but the pistol sticks out more under a cover garment. Less grip above the belt conceals better, but it's harder to get a full grip quickly. Cant and height interact, too: in many holsters, adding cant also lowers the grip slightly.
The 10-minute setup routine
Do this with an unloaded pistol, the magazine removed and the chamber checked twice.
- Pick your position. Start at 3:30–4 o'clock for strong-side OWB.
- Start neutral. Set the holster to 0° and a medium height.
- Grip test. Standing relaxed, reach for the grip without looking. Is your wrist straight? If you have to bend it back, add forward cant a few degrees at a time.
- Seated test. Sit in a car seat or chair. If the grip digs in or the muzzle hits the seat, add cant or lower the ride height.
- Concealment test. Put on your usual cover shirt and check the mirror from the side. If the grip prints, lower the height or bring the grip closer to your body.
- Draw test. Do 10 slow, dry draws to the ready position. The pistol should clear the holster in one clean motion without you shrugging your shoulder.
- Retention check. Seat the pistol, invert the holster over a soft surface and give it a gentle shake. It should stay locked.
- Lock it in. Tighten the adjustment and note your setting, so you can return to it after cleaning or swapping pistols.
Why adjustable beats buying three holsters

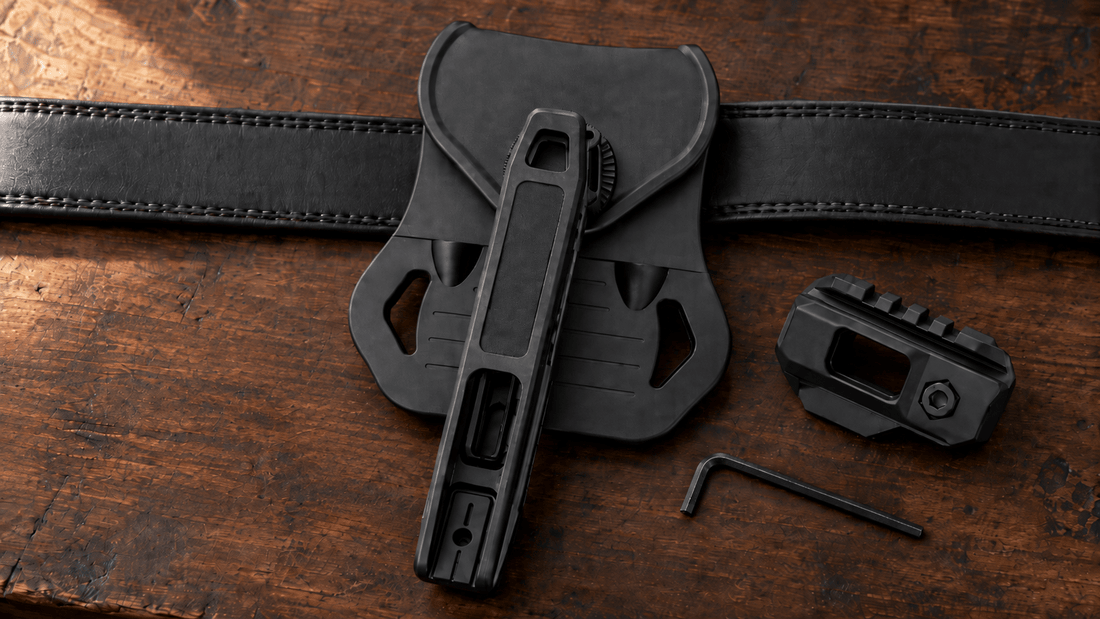

Most molded holsters come in one fixed cant. If you guessed wrong, you're back at the store. The TACFENDER Universal Holster puts the adjustments on the holster itself:
- Adjustable cant using the dial on the paddle.
- Adjustable height for high or low ride.
- Ambidextrous, so it works for left- or right-hand carry.
- Rail-lock retention with an included adapter, fitting 50+ pistol models across 130+ carry setups.
- Lifetime warranty.
Running a pistol with a different rail? Add the X2 TRX Holster Adapter. Setting up several shooters? The Ultimate Holster Bundle covers four.
Common cant mistakes
- Too much cant at 3 o'clock. The draw arcs outward and the muzzle can sweep your body. Keep 3 o'clock close to vertical.
- Too little cant behind the hip. You end up bending your wrist into a weak grip.
- Changing settings before a class or match. Your draw is built on repetition. Set it once, then practice.
- A floppy belt. No cant setting fixes a belt that lets the holster tilt on its own. Use a stiff gun belt.
Quick answer FAQ
What is FBI cant on a holster?
FBI cant is a forward tilt of roughly 10–20° that angles the grip forward. It matches the natural angle of your wrist when the holster sits slightly behind the hip.
Is straight drop or FBI cant better for OWB carry?
Straight drop works best right at 3 o'clock and for range or duty use. FBI cant is better at 3:30–4 o'clock and for sitting or driving.
Can I adjust the cant on the TACFENDER Universal Holster?
Yes. It has an adjustable cant dial and adjustable ride height, and it's ambidextrous.
Does ride height affect concealment?
Yes. The higher the grip sits above the belt, the more it prints under a shirt. Lowering the ride height improves concealment but makes a full grip slightly slower.
Related: dedicated or ambidextrous OWB? · what holster retention levels really mean · how to test a holster
Disclaimer: TACFENDER does not sell firearms or ammunition. Brand names are mentioned for comparison only. Practice only with an unloaded firearm and verified safe backstop, and follow the carry laws in your jurisdiction.
